4250 Stand Up Forklift Counterbalance forklift

  • stand up electric forklift, electric forklift, stand up lift truck
    Raymond lift trucks are engineered for Eco-Performance

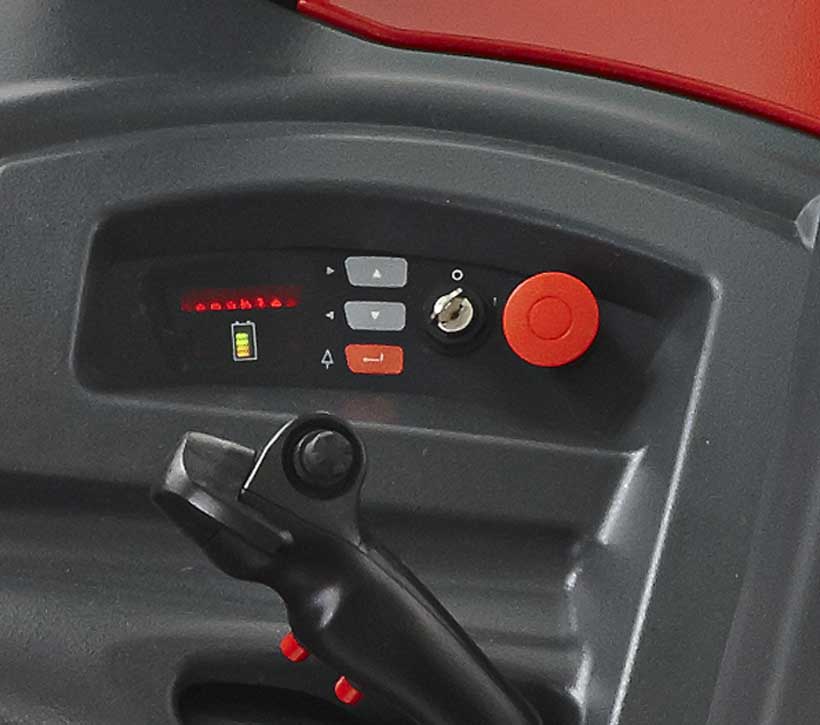

    Battery State-of-charge Display

    Because accurate battery-level readings can make all the difference in your overall efficiency.
    Battery State-of-charge Display
  • stand up forklift, forklift stand up
    Raymond engineers productive lift trucks

    Clear View Mast

    Allows operators to see what they are moving, through the overhead guard right down to the floor.
    Clear View Mast
  • Raymond stand up counterbalanced lift truck with comfortstance suspension
    Raymond ergonomic lift trucks

    ComfortStance Suspension

    Engineered to improve operator comfort, with automatic adjustment to each operator's weight.
    ComfortStance Suspension
  • electric stand up forklift, counterbalanced lift truck, stand up lift truck
    Raymond ergonomic lift trucks

    Single-axis Control Handle

    Designed for comfort and provides intuitive, simultaneous control of primary functions.
    Single-axis Control Handle
  • counterbalance forklift, Stand Up Forklift, electric lift truck
    Raymond engineers productive lift trucks

    Programmable Performance

    Fully programmable performance features make it easy to accommodate varying operator skill levels.
    Programmable Performance

An Economic, Ergonomic Powerhouse

The Raymond 4250 stand up forklift is engineered to take productivity to a whole new level—from the floor on up. This efficiently engineered stand up fork truck uses less energy than competing models, delivering a lower total cost of ownership. Your operators will appreciate the ergonomic features, from the smooth ride provided by the ComfortStance Suspension to the open view mast and single-axis control handle.

  • Battery: 36 volts
  • Capacity: 3,000 lbs. to 5,000 lbs.
  • Loaded and Unloaded Travel Speeds: 8.0 mph

Built to Perform

  • Raymond Stand Up Counterbalanced Forklift Single Axis Control Handle

    Variable, Simultaneous Control Handle

    Ensure better loading stability and move pallets faster and more efficiently. The variable speed lift/lower level is intuitive and easily accessible.
  • Raymond 4150 Stand Up Counterbalanced Truck with Sideshift


    Sideshift (4") provides sideways movement of the carriage permitting a load to be picked up or put away even if it is not perfectly aligned with the truck.
  • Raymond 4250 Stand Up Counterbalanced Truck Operator through Clear View Mast

    Excellent Visibility by Design

    The 4150 Stand Up Forklift Truck allows for a clear view of the forks and load from the floor to rack – with the angled front cover and overhead guard design – offering optimal sightlines for less product and facility damage.
  • Raymond 4150 Stand Up Counterbalanced Comfortable Compartment Design

    Comfortable Compartment

    The ergonomically designed compartment and single, low-force deadman pedal reduce operator fatigue and enhance comfort.
  • Raymond stand up counterbalanced lift truck comfortstance suspension system

    ComfortStance Suspension

    The innovative ComfortStance Suspension isolates operator from impacts for a smoother ride over dock levelers and uneven floors, and adjusts automatically to each operator’s weight.

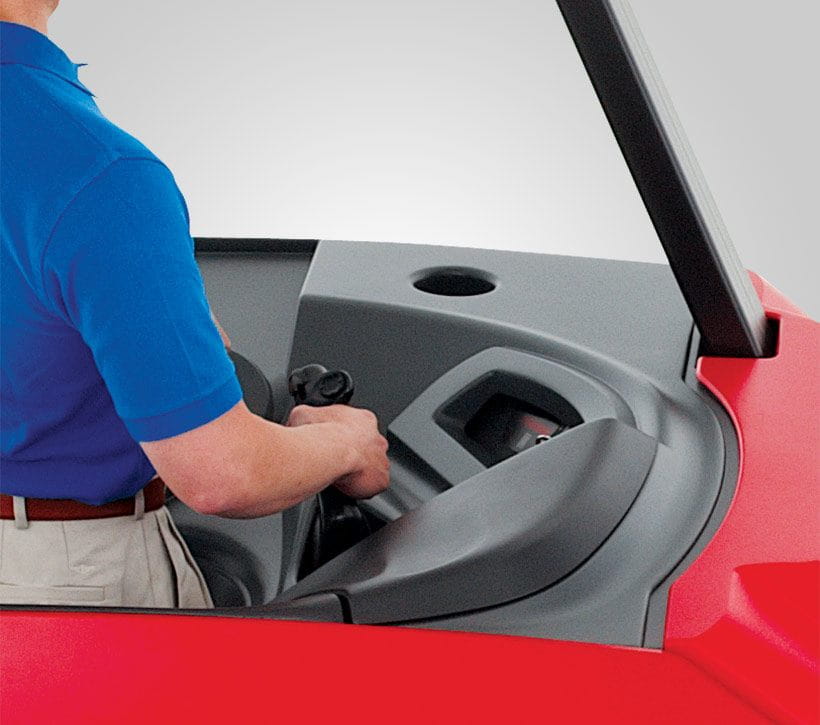

  • Raymond stand up counterbalanced ergonomic easy to use handle

    Intuitive Controls

    The single-axis control handle is designed for comfort and ease of use: simply push forward and the truck moves forward. Pull back and the truck reverses. The handle provides simultaneous control of travel,lift, load handling and horn functions.
  • Raymond 4150 Stand Up Counterbalanced Forklift Truck with exclusive ACR System

    ACR System™

    With Raymond’s exclusive ACR System, the 4150 Stand-Up Counterbalanced Fork Truck is equipped with quicker acceleration and competitive lift and travel speeds for your operation’s success.

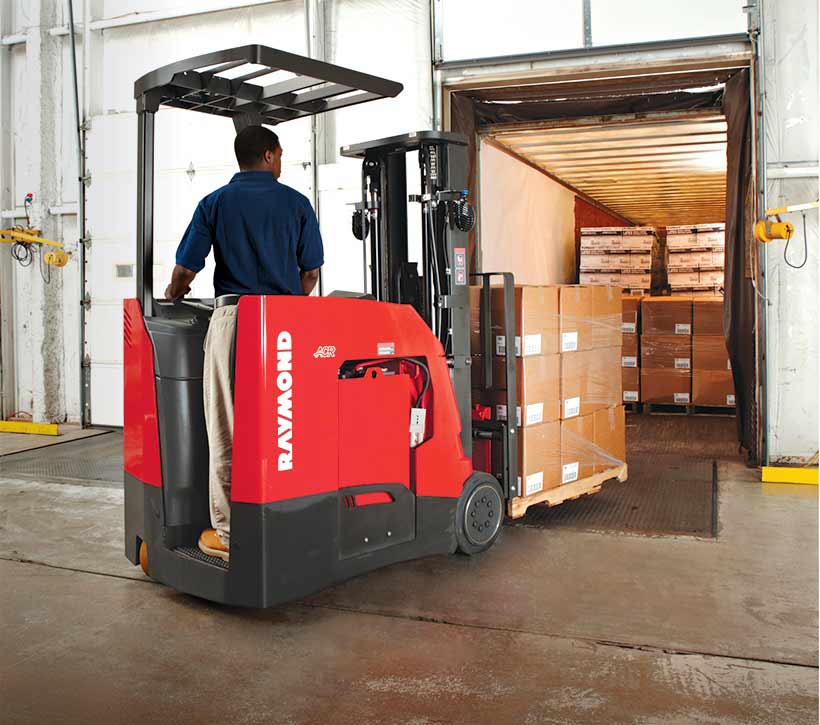

  • Raymond 4250 Stand Up Counterbalanced Truck Loading Trailer on Dock

    Faster Cycle Times

    With Eco-Performance – Raymond’s unique design philosophy that increases productivity and efficiency – Raymond counterbalanced lift trucks deliver the performance and maneuverability you need to get more done.
  • Raymond 4150 Stand Up Counterbalanced Truck

    Less Energy Usage

    Raymond stand up fork trucks use less energy, deliver more uptime and require fewer battery changes, saving you battery charges and energy costs.
  • Raymond 4250 Stand Up Counterbalanced Truck Battery Compartment Options

    Tight Right Angle Turns

    Engineered to perform right-angle stacking maneuvers in less total area, with a battery compartment designed to work comfortably in 10 foot aisle widths.
  • Raymond 4250 Stand Up Counterbalanced Truck Drive Wheels

    Dual AC Drive Motors

    Counter-rotating drive wheels help to execute tight turns.
  • Raymond 4250 Stand Up Counterbalanced Truck Dual Steer Wheel Design

    Dual Steer Wheel Design

    Dual drive and steer wheel design allow one wheel to counter-rotate during turns to provide greater maneuverability.
  • Raymond Stand Up Counterbalanced Truck Easily Removable Covers

    Convenient Service Access

    The injection-molded polyethylene (PE) covers deliver longer life, service convenience and easy service access to components.
  • Raymond Stand Up Counterbalanced Fork lift truck maintenance access

    Electric Brakes

    Dual electric disc brakes are easily located for convenient repairs and service access.
  • Raymond 4150 Stand Up Counterbalanced Truck Precise Maneuverability

    Regenerative Braking

    Maximizes heat dissipation, reducing maintenance time and cost of ownership.

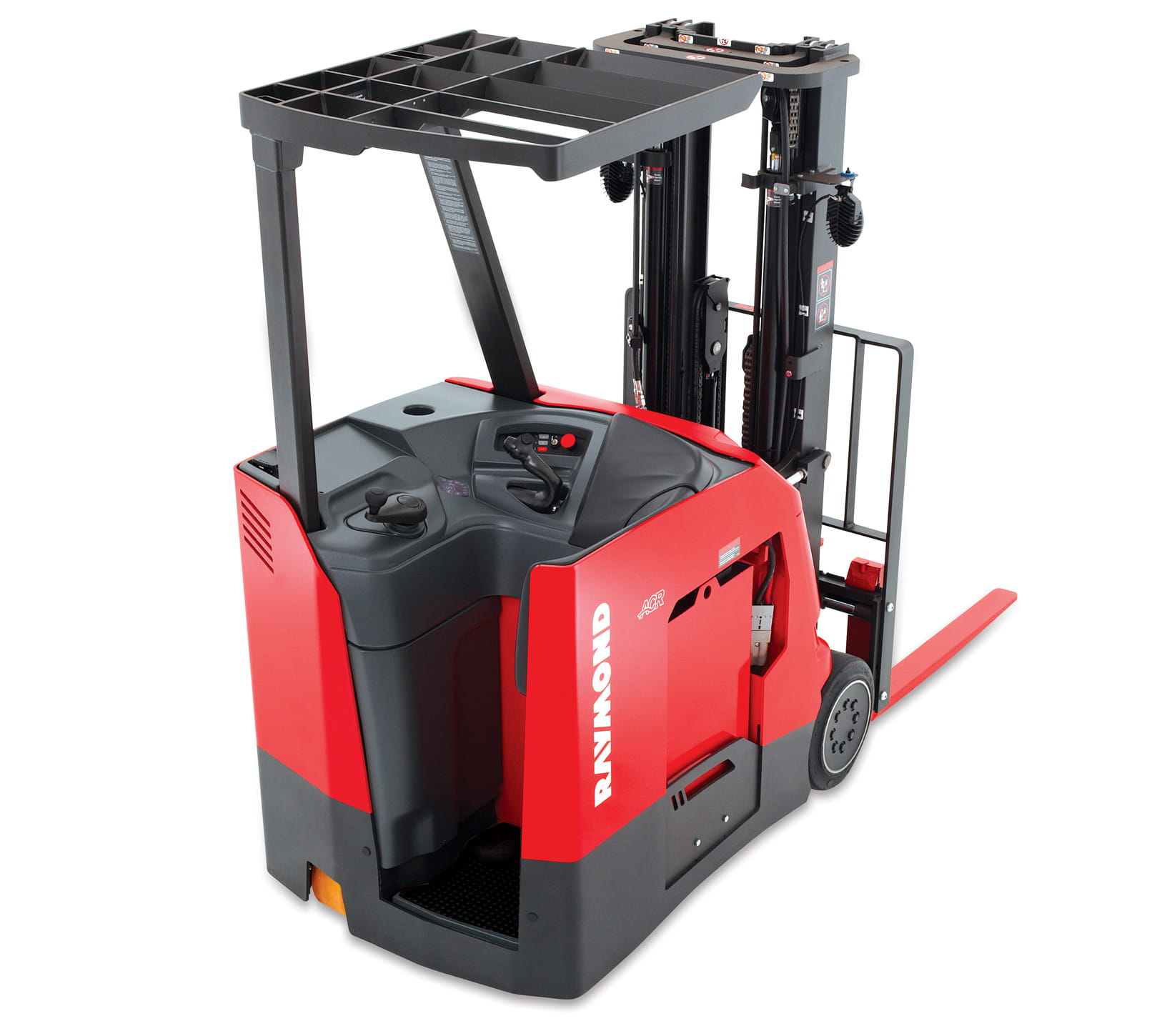

Raymond 4250 Stand Up Forklift Information

  • Raymond 4250 Stand Up Forklift: Engineered For The Long Haul

    The Raymond 4250 stand up forklift delivers superior visibility, exceptional ergonomics and unmatched efficiency, making it the best performing counterbalance forklift in the industry. Engineered with exclusive features and technologies, this multi-purpose electric lift truck will help you run a faster and smoother operation while increasing operator confidence and lowering your total cost of ownership. Ideal for jobs that require maneuverability – like dock operations, transport, put away or supplying rack vehicles – each stand up forklift is designed to work alone or with other systems as part of a total material handling solution.

  • Eco-Friendly Warehouse Solutions & Eco-Performance Lift Trucks

    Raymond ACR System offers you up to 20% more battery run time. Raymond Regenerative Lowering recharges the battery when the forks are lowered, extending battery life and maximizing productivity. Find out how Raymond can put the power of Eco-Performance in your hands.

  • stand up lift truck, audible alarm

    Audible Alarm

    Depending on operating environment ambient noise levels, an alarm may help to increase recognition of a forklift by pedestrians and operators of other trucks in the warehouse. The high-pitched alarm automatically activates when the operator places the truck in the designated travel mode.

  • stand up forklifts, operator compartment sensor system

    Operator Compartment Sensor System

    Operator Compartment (OCSS) is designed as a training aid to encourage proper operating procedures. Two light sensors, mounted in a sturdy housing, span the entry to the operator compartment. When blocked, a tone sounds and a message scrolls on the dashboard operator display. When the truck is stationary, it will not travel if the sensor is blocked or interrupted.

  • stand up lift truck with work lights

    Work Lights

    Optional work lights may reduce operator eye strain and increase productivity. The lights are individually adjustable by the operator to the application requirements.

  • stand up lift truck, battery gate interlock

    Battery Gate Interlock

    This option will cut-out travel when either of the battery gates are not in place.

  • Bulk Storage

    Raymond offers a wide range of forklift trucks that efficiently maneuver through bulk storage areas. With hundreds of combinations of heights, capacities and features as well as a great range of operational applications, Raymond stand up fork trucks can meet your bulk storage needs, no matter how specialized.

  • Cold Storage

    Refrigerated warehouses, blast freezers, and other cold storage applications require robust control systems. Raymond maintains its own cold storage test facility to replicate the harshest conditions, to test and prove our systems in extreme cycles of freezing and thawing.

  • Specialty Rack

    Raymond counterbalanced forklift trucks can interface with every industry-standard warehouse rack. If you have selective, drive-in/drive-thru, cantilever, pallet flow or push-back racks, Raymond has a solution that will help maximize your storage capacity and productivity.

  • Truck Loading and Unloading

    Improve your dock operation productivity with Raymond stand up counterbalanced trucks. Counterbalanced trucks are ideal for operations that require breakdown of pallets removed from trailers, long runs to P&D stations, or a combination of both. Raymond lift trucks offer a wide variety of operating positions that are engineered to enhance driver comfort and reduce fatigue for this specific application.
