8210 Motorized Pallet Jack Walkie Pallet Jack

  • Power Pallet Jack, Raymond 8210 Walkie Pallet Jack, Pallet Jack washdown at food processing plant
    Raymond lift trucks provide versatile material handling solutions

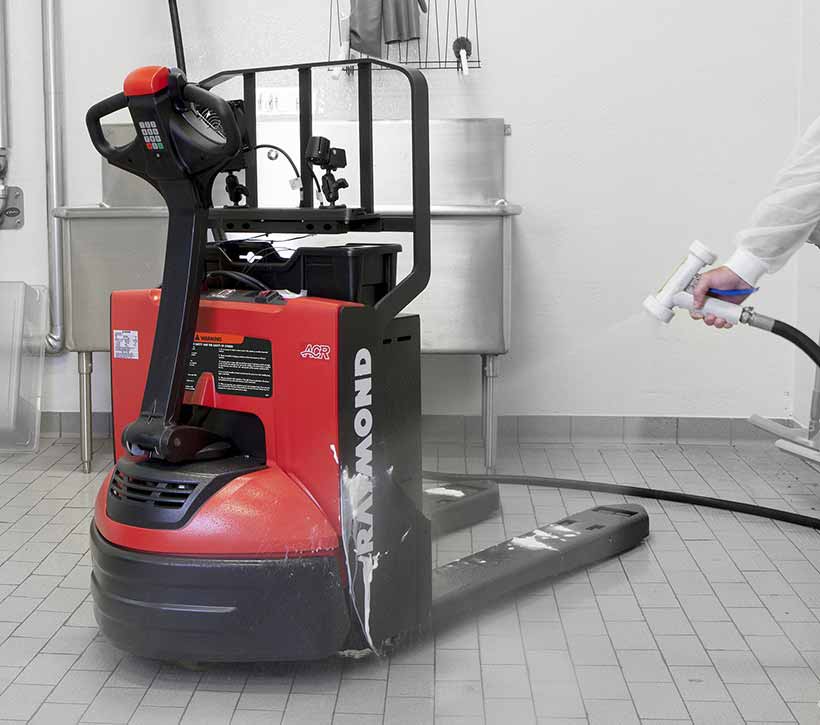

    IP65 Protection To Electronics

    With sealed contactors, connectors, controllers and cabling, your electronics can take regular wash downs and still reliably perform.
    IP65 Protection To Electronics
  • Motorized Pallet Jack, Raymond 8210 Walkie Pallet Jack
    Raymond lift trucks provide maneuverability


    Provides superior maneuverability at slower controlled speeds.
  • Raymond durable lift trucks

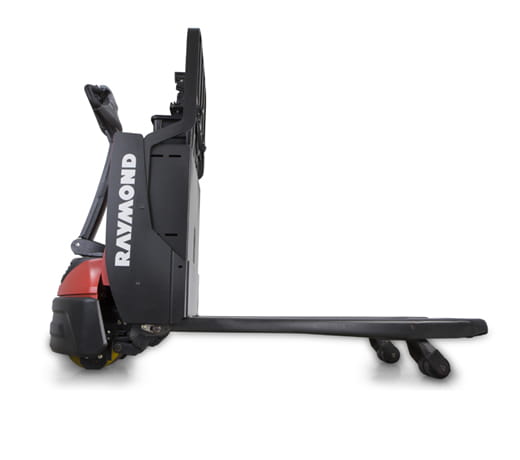

    Lift and Go

    Lets you reduce travel speed to train operators to travel with forks elevated to prevent unnecessary wear.
    Lift and Go
  • Raymond Power Pallet Jack, Motorized Pallet Jack electric brake release
    Raymond lift trucks are designed for ease of maintenance

    Electric Brake Release

    Allows for release of the brake during low battery conditions without removing the covers.
    Electric Brake Release

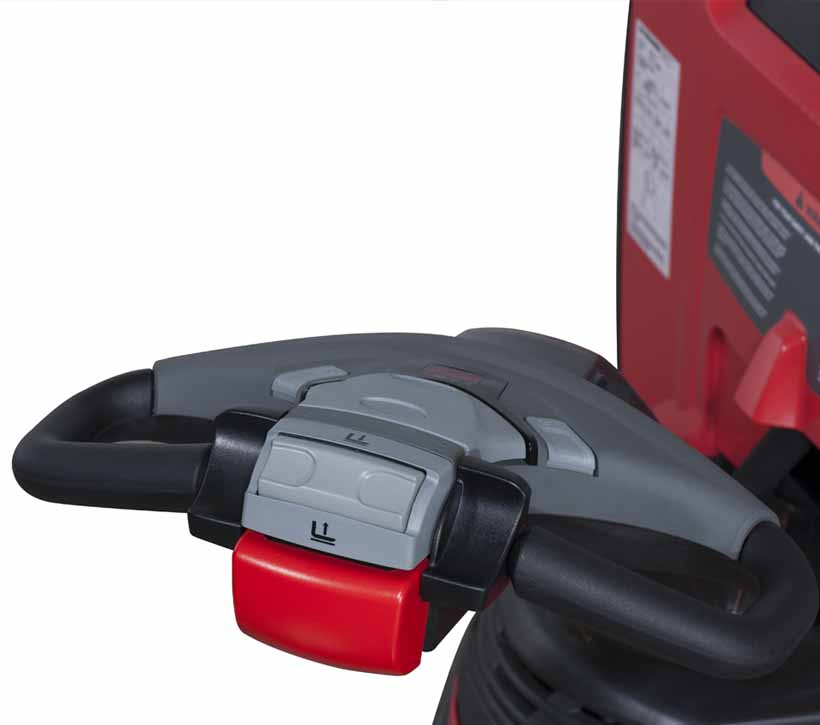

  • Motorized Pallet Jack, Raymond 8210 Power Pallet Jack intuitive control handle
    Raymond ergonomic lift trucks

    Ergonomic Control Handle

    Dual throttle controls are easy to reach and operate.
    Ergonomic Control Handle

Better Engineering. Proven Technology.

The Raymond 8210 powered pallet jack with AC power provides unparalleled maneuverability to navigate in tight spaces – congested store aisles, busy docks and pinwheeling in the back of trailers. Operators will appreciate the smooth, controlled operation and your business will benefit from the increased strength and energy efficiency the 8210 motorized pallet jack delivers without sacrificing durability.

  • Battery: 24 volt
  • Capacity: 4,500 lbs.
  • Frame Width: 28 inch overall width
  • Power System: AC Traction Control

Built to Perform

  • Raymond 8210 Walkie Pallet Jack with Ductile iron frame

    Ductile Iron

    Ductile iron in the frame supports the drive motor with almost twice the yield strength of steel. Ductile iron bell cranks and wheel forks provide a more durable undercarriage construction.
  • Raymond 8210 Walkie Pallet Jack with HSLA bumper

    High Strength Low Alloy (HSLA) Bumper

    HSLA is commonly used in automotive truck frames, and tests at 3 times greater strength and durability over competitive bumpers - but weighs considerably less - to help maintain the efficiency of the 8210 pallet truck.
  • Raymond 8210 Walkie Pallet Jack with lift and go feature

    Lift and Go Programmability

    A Raymond exclusive, this technology lets you reduce travel speed to train operators to travel with forks elevated to prevent unnecessary wear over dock plates, lift gates and curbs.
  • Raymond 8210 Walkie Pallet Trucks

    Fully Programmable

    Programmable performance parameters let managers customize truck performance to fit the work environment and operator needs.
  • Raymond 8210 Walkie Pallet Truck


    Raymond's ergonomically contoured handle features easy‐to‐reach controls that are intuitive to learn and operate.
  • Raymond 8210 Walkie Pallet Jack

    Storage Tote and Accessory Bar

    The optional storage tray and accessory bar put the operators tools at their fingertips. The powered accessory bar interfaces with RAM-mounted accessories for additional conveniences such as a work light and fan.
  • Raymond 8210 walkie pallet truck with removable polymer cover

    Poly Carbonate Covers

    Light weight yet durable, our snap fit poly covers provide the durability you need, yet secure without screws for quick and easy service access.
  • Raymond 8210 Walkie Pallet Truck

    Removable Bumper

    The high strength low alloy bumper is lightweight yet resilient, and removes easily for convenient service access.
  • Raymond 8210 Electric Walkie Pallet Truck

    Stainless Pins

    Come standard in the undercarriage to prevent corrosion and simplify service.
  • Raymond 8210 walkie pallet jack maneuverability on trailer

    AC Traction Control

    Provides seamless speed transitions, allowing the operator the control needed to smoothly move the truck one inch at a time.

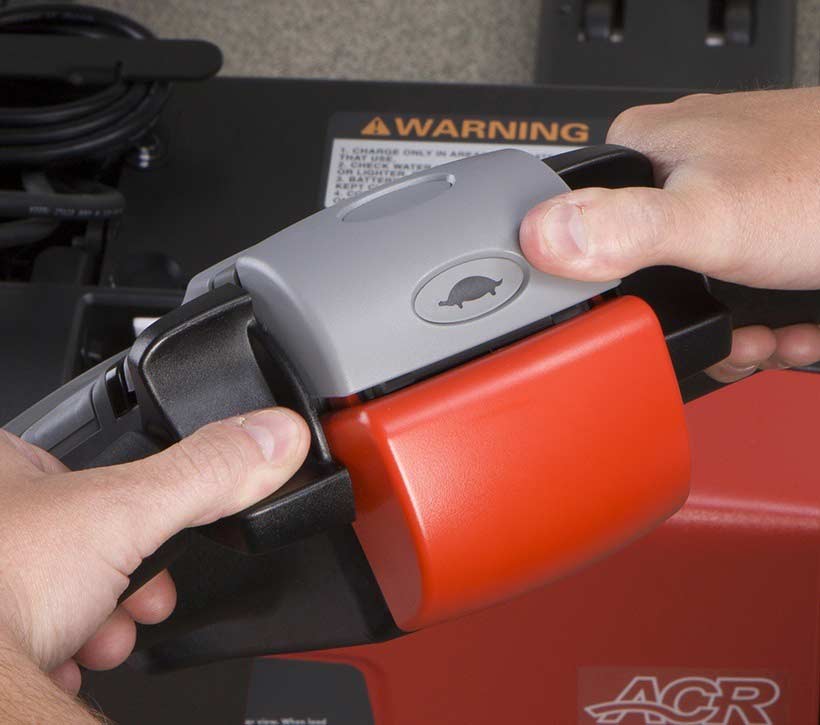

  • Raymond 8210 Walkie Pallet Jack click 2 creep for pinwheeling


    Raymond's exclusive Click2Creep feature provides unmatched maneuverability. Click2Creep automatically reduces travel speed and allows the truck to be operated with the handle tucked tightly to the tractor for pinwheeling in trailers, and providing superior maneuverability at a slower, controlled speed.
  • Raymond 8210 walkie pallet truck with static torque control

    Static Torque Control

    With static torque control, the 8210 walkie pallet truck separates speed from torque, giving operators the power they need to maneuver the 8210 walkie pallet truck up and over lift gates and curbs with smooth, controlled operation at all speeds.
  • Raymond 8210 walkie pallet jack with antiroll braking

    Anti-Roll Braking

    Prevents the unit from rolling when parked on uneven surfaces — ensuring the truck’s movement is controlled until the operator requests travel.
  • Raymond 8210 Walkie Pallet Truck

    Auto Power Off

    Our exclusive Auto Power Off feature monitors truck usage and powers the unit down when idle, preserving battery capacity to keep you running for a full day’s work.
  • pallet jack brake release

    Electric Brake Release

    This feature releases the electric brake during low battery conditions without having to remove the truck covers. Our exclusive design retains braking ability when the handle is in the brake position, increasing operator control.
  • Raymond 8210 power pallet truck cold storage conditioning

    Cold Storage Conditioning

    All temperature hydraulics, transmission oils and temperature sensing components protect control systems — assuring peak performance and productivity, while stainless steel undercarriage pins protect from corrosion and rust.

  • Raymond 8210 motorized pallet jack accessory bar

    Accessory Bar

    Interfaces with RAM-mounted accessories to put additional operator tools at their fingertips; available with optional work light and fan.

  • Raymond 8310 Walkie Pallet Truck Pin Code Pad

    PIN Code Pad

    The optional personal identification number (PIN) code pad provides password protection for additional security. Store up to 10 different passwords to prevent unauthorized operation.

  • Raymond 8210 walkie pallet truck storage tray

    Large Storage Tote

    The optional tote helps to keep work tools organized and at your operators fingertips for added convenience and productivity throughout the shift.

  • Raymond 8210, Extreme Environment, Cold Storage

    Extreme Environment Protection

    Hot-dip galvanization and electronics coatings protect components and extend the life of the truck in wet, corrosive environments.

  • Cold Storage

    Refrigerated warehouses, blast freezers, and other cold storage applications require robust control systems. Raymond maintains its own cold storage test facility to replicate the harshest conditions; testing and proving our systems in extreme cycles of freezing and thawing.

  • Dock and Delivery

    The Raymond 8210 walkie pallet truck is ideal for use on-board delivery trucks. This compact AC-powered walkie is exceptionally maneuverable and allows pin wheeling in trailers for maximum cube.

  • Processing Applications

    Raymond offers Extreme Environment Corrosion Protection with hot-dip galvanization on the 8210 electric walkie pallet truck to protect trucks used in wet, caustic and briny applications from moisture and to flush contaminants.

  • UL EE Applications

    This lift truck complies with Underwriters Laboratories (UL) 583. Raymond® Type E and EE trucks are designed and manufactured to operate in classified locations as defined in NFPA 505. Type E and EE products are tested and certified by Underwriters Laboratories (UL).

  • 8210: Power Proven to Perform

    The Raymond 8210 motorized pallet jack delivers power proven to perform. With proven technology and smarter, stronger and more efficient design, the 8210 Walkie Pallet Truck delivers power and battery-saving features to tackle the job at hand.

  • 8000 Series Pallet Jacks

    From the heavy-duty undercarriage to the rugged polymer cover that won't rust, fade or dent, Raymond pallet jacks are built with the right material for the job. With fewer and longer lasting components that require less maintenance, and engineered to handle high volume dock work, horizontal transportation and low-level order picking with ease.
