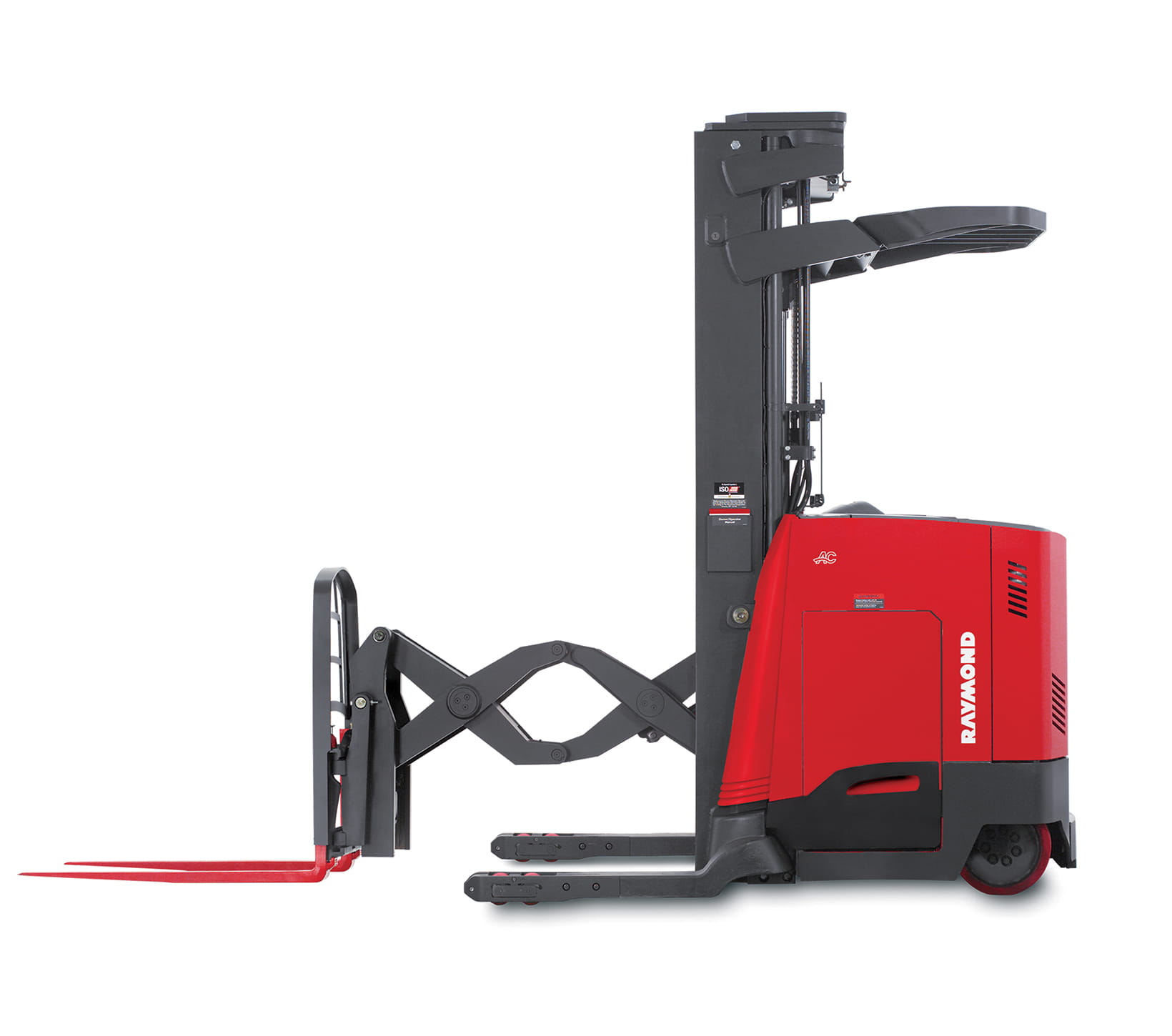

7000 Series Deep-Reach Truck Double Deep Forklift

  • Raymond Forklift Truck, Reach lift AC motor
    Raymond lift trucks are engineered for Eco-Performance

    ACR System

    Delivers reliable 24/7 performance; quiet, smooth and precise traction and lift; and more run time per battery charge.
    ACR System
  • raymond forklift baselegs
    Raymond lift trucks provide stability for operator confidence

    Ductile Iron Baselegs

    Ductile iron is 30% stronger and more durable than steel, ensuring reliable load support and enhanced strength and durability.
    Ductile Iron Baselegs
  • Raymond reach truck visibility
    Raymond engineers productive lift trucks

    Patented Open View Mast

    Provides superior visibility with a direct line of sight to the baselegs, load and rack.
    Patented Open View Mast
  • Reach Lift, Raymond Forklift A frame suspension
    Raymond lift trucks provide stability for operator confidence

    Load Stability at Height

    Our unique steered idler and inertial dampener work together to provide the operator confidence when handling loads at height.
    Load Stability at Height
  • Raymond reach truck, forklift truck
    Raymond engineers productive lift trucks

    Universal Stance

    This Raymond-exclusive configuration offers three operating positions, greater visibility and allows the operator to face the task at hand.
    Universal Stance

Increase Storage Density

Deep-Reach forklift trucks save two out of five aisles versus single deep storage, allowing double-deep pallet storage in the racks for increased storage density. Raymond double deep reach forklifts are available with your choice of compartment configuration — Universal Stance, sidestance reach truck or sit-down reach truck.

  • Battery: 24 and 36 volts
  • Capacity: 3,200 lbs. maximum
  • Elevated Height: 444" maximum
  • Customized for Your Applications: Hundreds of configurations available to meet your specific needs

Built to Perform

  • Container Store Warehouse

    Battery Shift Life

    Longer battery shift life means trucks run longer on a single charge, reducing energy costs and downtime for battery changes.
  • Raymond reach-fork truck

    Performance Without Compromise

    By using less energy, you benefit from lower operational costs with reduced kWh usage and fewer carbon emissions.
  • Raymond forklift, reach truck with regenerative lowering

    Efficient by Design

    Fewer battery changes means more pallets moved over the course of a shift at a lower cost.
  • Raymond Reach-Fork Trucks ACR System Drive Motor

    ACR System

    Delivers quicker acceleration and electronic breaking, faster lift and lower speeds, and smooth directional changes for more efficient load handling and movement in storage aisles.
  • reach lift, Raymond reach fork truck open view mast

    Open View Mast

    The universal stance configuration allows greater visibility, leading to increased productivity and operator confidence, fewer errors and less product, rack and facility damage.
  • Raymond reach truck undercarriage

    Exclusive Steered Idler

    Prevents caster snap, reducing the time it takes an operator to back away from a rack with a load at high elevations—making the most of uptime.
  • OnBoard Active Maintenance

    Reduced Maintenance Requirements

    Reduce downtime with advanced, on-board diagnostics that provide self-checking capabilities for simplified troubleshooting, and scheduled maintenance intervals of 500 hours that are twice that of competitors.
  • Raymond reach trucks handle components

    Flex Circuit Technology

    Easy-to-remove control handle with only 35 parts—61% fewer parts than competing models—for less maintenance and lower costs.
  • Raymond Reach Trucks easy load wheel change

    Bolt-on Wheel Plates

    With floating articulation, allows for easy load-wheel replacement and improved ride quality.
  • Raymond reach truck step height

    Low Entry-step Height

    Easier compartment entry helps operators avoid unnecessary climbing, minimizing fatigue over the course of a shift.
  • Raymond Reach-Fork trucks universal stance handle

    Single-axis Control Handle

    Simultaneous function with intuitive vehicle controls that are easy to learn, for greater operator confidence and productivity.
  • Forklift truck, stand up reach forklift compartment

    Spacious Compartment

    Designed for operator comfort with wraparound, contoured padding, multiple lean points and cushioned floors.
  • Raymond reach-fork a-frame suspension

    A-frame Suspension

    Delivers smooth, precise handling with full-time traction and steering alignment.
  • Raymond Reach Truck inertial dampener

    Unique Inertial Dampener

    Shocks and sways are reduced before they reach the operator compartment—enhancing stability and operator performance.
  • Steered Idler Design

    Steered Idler Design

    Automatically aligns with the drive wheel to prevent caster snap and provides rock-solid stability at high elevations, increasing operator confidence.
  • Raymond Deep-Reach Truck Reach Scissor Mechanism

    Deep-Reach Capacity

    Raymond double deep reach truck configurations allow for double-deep pallet storage in the racks, saving two out of every five aisles for increased storage density.

  • Fork-Tip Laser Guide for Raymond Reach-Fork Trucks

    Fork-tip Laser Guide

    Assists operators for faster loading and unloading of pallets at height by providing a clearly visible laser guide on the pallet.

  • Height Tilt Indicator for Raymond Reach Forklifts

    Height Tilt Indicator

    Digital readout shows height of forks and condition of tilt. Ideal for lift heights above 200”

  • Raymond Reach-Fork truck universal stance optional secondary control handle

    Secondary Control Handle

    Allows for increased visibility for all tasks no matter the direction of travel. Optional with the Universal Stance configuration.

  • thermakit, reach truck, cold storage

    ThermaKit System

    For cold storage warehouses, our padded, heated control handle and heated floor cushion keep your operators warm. By keeping hands and feet warmer for longer, ThermaKit enables improved productivity shift after shift.

  • Raymond Vantage Point Camera for High Rack in Narrow Aisle Applications

    Vantage Point Camera

    The color display monitor mounted in the operator’s compartment helps the operator to identify, place and retrieve pallets at greater heights.

  • Raymond Reach Truck operator compartment entry sensor

    Operator Compartment Sensor System

    Designed as a training aid to encourage proper operating procedures. Two light sensors span the entry to the operator compartment, sounding a tone and displaying a message on the operator's display when the sensors are blocked. If stationary, the truck will not travel if the light sensor is blocked.

  • Cold Storage

    Refrigerated warehouses, blast freezers, and other cold storage applications require robust control systems. Raymond maintains its own cold storage test facility to replicate the harshest conditions to test and prove our systems in extreme cycles of freezing and thawing.

  • High Rack

    The Universal Stance configuration in combination with our exclusive open view mast make Raymond 7000 Series Deep-Reach trucks an ideal fit for high-lift applications. Raymond double deep reach trucks provide operators with a clear line of sight to the baselegs, load and rack. And our exclusive Universal Stance compartment allows for a variety of operating positions for enhanced comfort and productivity throughout a shift.

  • Narrow Aisle

    With more than 200 combinations of heights, features and capacities, Raymond Deep-Reach trucks for narrow aisle storage offer superior versatility and effective solutions to improve the utilization of your warehouse space.

  • Specialty Rack

    Raymond Deep-Reach trucks are designed to interface with double deep racks to help maximize your selectivity, storage capacity and productivity.

  • UL EE Applications

    Raymond Deep-Reach trucks comply with Underwriters Laboratories (UL) 583. Raymond Type E and EE trucks are UL-tested and UL-certified and designed and manufactured to operate in classified locations as defined in the National Fire Protection Association's NFPA 505.

  • Celebrating 65 Years of the Raymond Reach Truck

    Raymond pioneered narrow aisle with the invention of the first narrow aisle forklift in 1951. For 65 years, we’ve continuously innovated the reach forklift—from the introduction of AC technology into electric forklifts to the industry's first integrated operator display—to give our customers the best reach trucks in the industry.

  • Vantage Point Camera System

    With the Vantage Point option, a camera below the fork carriage delivers high-resolution images to a color monitor in the operator compartment. A clearly visible green reference line on the monitor shows the operator the position of the fork tips, enabling accurate retrieval.
