7530 High Capacity Reach-Fork Truck Narrow Aisle Forklift

  • greater storage flexibility, high capacity reach truck
    Raymond lift trucks provide stability for operator confidence

    Greater Storage Flexibility

    Capable of lifting full pallets to top beam, and 2,000 lbs. to 505" (Single/Deep-Reach) allows flexible pallet storage.
    Greater Storage Flexibility
  • forklift production, visibility, reach truck
    Raymond engineers productive lift trucks

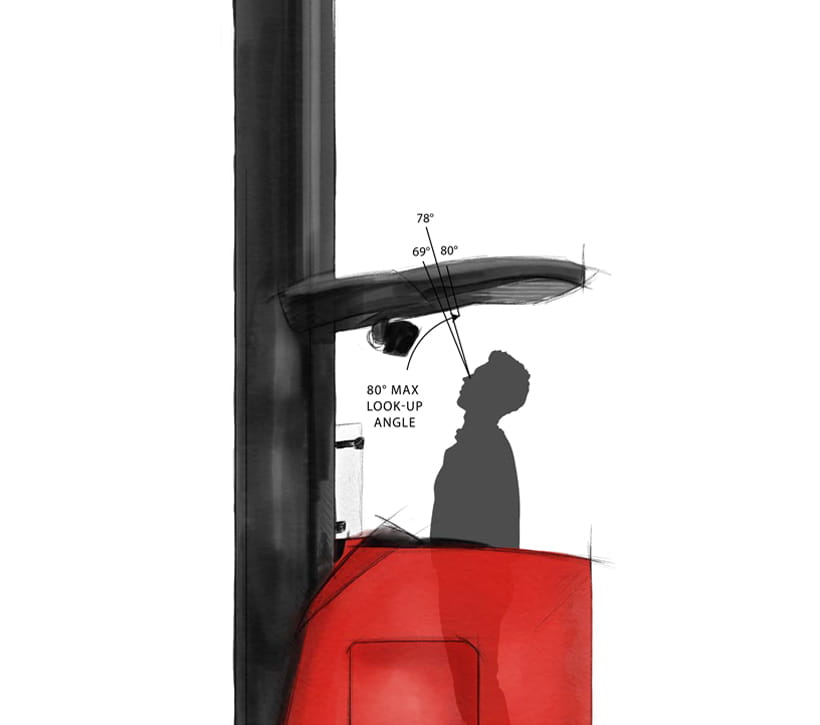

    Better Visibility & Operator Comfort

    Universal Stance allows operators to face forward and look directly at rack, increasing operator comfort and visibility at height.
    Better Visibility & Operator Comfort
  • high capacity reach truck, increased uptime
    Raymond lift trucks are engineered for Eco-Performance

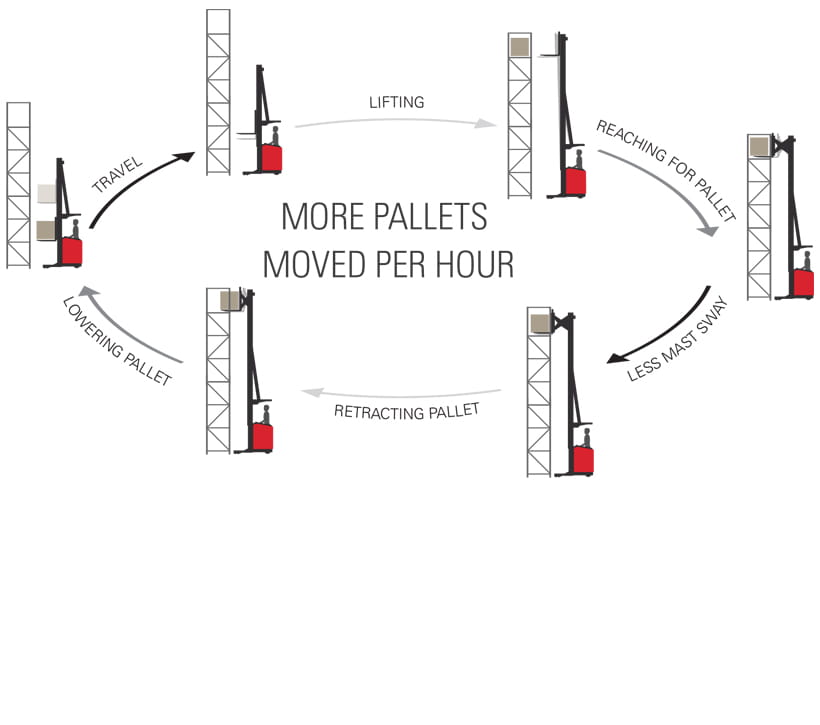

    15% Faster Cycle Times

    Independent third party testing found the 7530 reach truck to have 15% faster cycle times for more pallet moves per hour.
    15% Faster Cycle Times
  • Reach Lift, Raymond Forklift A frame suspension
    Raymond lift trucks provide stability for operator confidence

    Load Stability at Height

    Unique stability system, including a 4-point stability design and heavy duty mast frame, reduces lateral movement when lifting heavy loads at height.
    Load Stability at Height
  • high capacity reach truck, increased uptime
    Raymond engineers productive lift trucks

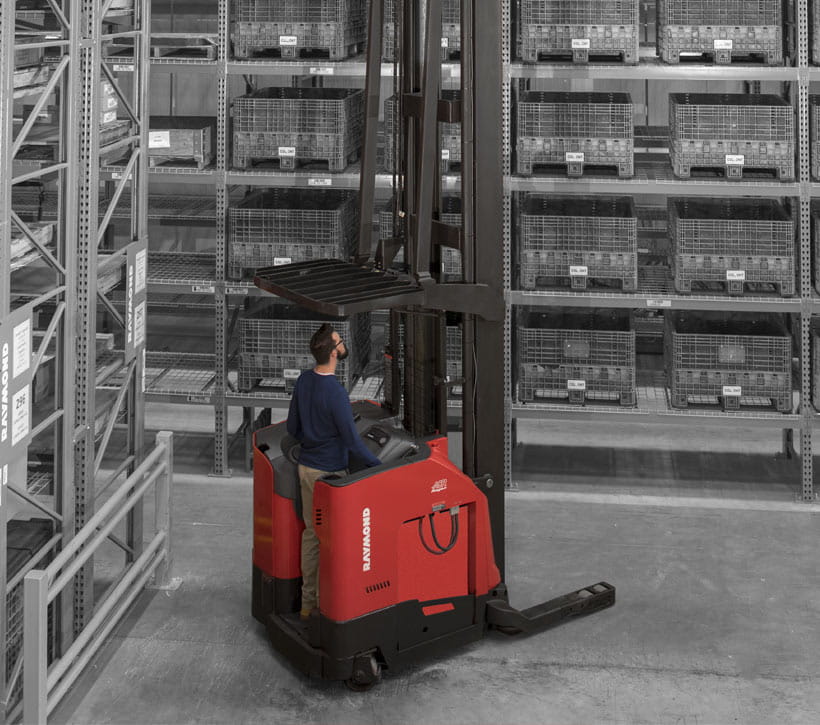

    More Uptime with Greater Reliability

    Engineered with fewer and more durable parts, minimizes and simplifies maintenance.
    More Uptime with Greater Reliability

Highest. Heaviest. Fastest.

The Raymond High Capacity Reach-Fork truck offers the highest lift heights, heaviest capacities and fastest cycle times, providing greater capacity retention and improved cube utilization.

  • Battery: 36 volt
  • Capacity: 4,500 lbs.
    Capable of lifting 2,000 lbs. to 505" (Single/Deep-Reach)
  • Elevated Height: 542" maximum
  • Baseleg Opening: 41", 42" and 45"
  • Customized for Your Application: Hundreds of configurations available to meet your specific needs

Built to Perform

  • high capacity reach truck, reach fork truck

    Faster Cycle Times

    ACR System delivers quicker acceleration and electronic braking, faster lift and lower speeds, and smooth directional changes for 15% faster cycle times than competitive trucks.
  • Raymond reach forklift suspension system

    Superior Load Handling

    Exclusive Steered Idler prevents caster snap, reducing the time it takes an operator to back away from a rack with a load at high elevations.
  • Raymond reach trucks visibility

    Greater Visibility

    Patented Open View Mast provides superior visibility for increased productivity and operator confidence, fewer errors and less product, rack and facility damage.
  • Raymond Reach-Fork Trucks ACR System Drive Motor

    Energy Conscious System

    ACR Control System provides faster speeds and smoother operations to assist in moving more pallets efficiently and economically.
  • high capacity reach truck, regenerative lowering

    Regenerative Lowering

    7530/7730 reach trucks create power through regenerative lowering, returning amps back to the battery when the truck is lowering a load, resulting in fewer battery changes and reduced downtime.
  • high capacity reach truck, reach fork truck

    Efficient Design

    A larger displacement pump optimizes the motor for longer battery shift life so trucks stay on the floor longer.
  • Raymond Reach Truck inertial dampener

    Smooth Operation

    Inertial Dampener reduces shocks and sways before they reach the operator compartment—enhancing stability and operator performance.
  • Raymond reach-fork a-frame suspension

    Precise Pallet Handling

    A-Frame Suspension delivers smooth, precise handling with full-time traction and steering alignment.
  • Steered Idler Design

    Greater Confidence at Height

    Heavy duty mast frame offers vertical stability when lifting heavier loads to higher heights for less mast sway and greater operator confidence.
  • high capacity reach truck, increased visibility

    Superior Visibility and Comfort

    Universal Stance allows the operator to face forward and look straight up at loads providing more operator comfort when working in high racking applications.
  • Raymond Reach-Fork trucks universal stance handle

    Intuitive, Easy-to-Learn Controls

    Single-axis control handle provides simultaneous function with intuitive vehicle controls that are easy to learn for greater operator productivity.
  • high capacity reach truck, integrated display

    Simple, Intuitive Operation

    A single 7" Multifunction Color Touchscreen Display consolidates vehicle systems into one monitor and makes truck information readily available and easily visible for greater visibility and usability.
  • Raymond Reach Trucks easy load wheel change

    Easier Maintenance

    Bolt-on wheel plates with floating articulation, allows for easy load-wheel replacement and improved ride quality.
  • OnBoard Active Maintenance

    Greater Durability and Reliability

    Baselegs made from ductile iron, which is 30% stronger and more durable than steel, enhances strength and durability for reliable load support.
  • Raymond reach trucks handle components

    Fewer Parts and Better Components

    Easy-to-remove control handle with only 35 parts —61% fewer parts than competing models—for less maintenance and lower costs.
  • Raymond Vantage Point Camera for High Rack in Narrow Aisle Applications

    Vantage Point Camera

    The color display monitor mounted in the operator’s compartment helps the operator to identify, place and retrieve pallets at greater heights.

  • Fork-Tip Laser Guide for Raymond Reach-Fork Trucks

    Fork-tip Laser Guide

    Assists operators for faster loading and unloading of pallets at height by providing a clearly visible laser guide on the pallet.

  • Height Tilt Indicator for Raymond Reach Forklifts

    Height-tilt Indicator

    Digital readout shows height of forks and condition of tilt. Ideal for lift heights above 200 inches.

  • thermakit, reach truck, cold storage

    ThermaKit System

    For cold storage warehouses, our padded, heated control handle and heated floor cushion keep your operators warm. By keeping hands and feet warmer for longer, ThermaKit enables improved productivity shift after shift.

  • Raymond Reach Truck operator compartment entry sensor

    Operator Compartment Sensor System

    Designed as a training aid to encourage proper operating procedures. Two light sensors span the entry to the operator compartment, sounding a tone and displaying a message on the operator's display when the sensors are blocked. If stationary, the truck will not travel if the light sensor is blocked.

  • Cold Storage

    Refrigerated warehouses, blast freezers, and other cold storage applications require robust control systems. Raymond maintains its own cold storage test facility to replicate the harshest conditions to test and prove our systems in extreme cycles of freezing and thawing.

  • Narrow Aisle

    With more than 200 combinations of heights, features and capacities, Raymond Reach trucks for narrow aisle storage offer superior versatility and effective solutions to improve the utilization of your warehouse space.

  • Specialty Rack

    Raymond 7000 Series Reach-Fork trucks can interface with every industry-standard warehouse rack. If you have selective, double deep, drive-in/drive-thru, cantilever, pallet flow or push-back racks, Raymond has a solution that will help maximize your storage capacity and productivity.

  • UL EE Applications

    Raymond 7000 Series Reach-Fork trucks comply with Underwriters Laboratories (UL) 583. Raymond Type E and EE trucks are UL-tested and UL-certified and designed and manufactured to operate in classified locations as defined in the National Fire Protection Association's NFPA 505.

  • Raymond High Capacity Reach Truck – Reach Higher and Lift Heavier

    The Raymond High Capacity Reach Trucks are designed to provide greater storage and slotting flexibility for lower costs. With the highest reach in the industry, our trucks let you increase the height of your racking to optimize your storage capacity without increasing your footprint.

  • Raymond High Capacity Reach Trucks – Lower Your Cost Per Pallet Stored

    With the highest reach in the industry, Raymond High Capacity Reach Trucks let you increase the height of your racking to optimize your storage capacity without increasing your footprint; lowering your overall cost per slot.

  • Raymond High Capacity Reach Truck at ProMat 2019

    Susan Comfort, Product Manager of Narrow Aisle Solutions, explains the benefits of the Raymond High Capacity Reach Truck and combating space restraints within your warehouse.

  • 7000 Series Reach-Fork Trucks

    Raymond 7000 Series Reach Trucks are designed with industry-leading lift, lower, acceleration and travel speeds – maximizing the number of pallets moved per hour. Whether your operators need to perform in high stacking applications, move from dock to stock areas or travel long distances in your warehouse, our reach trucks offer the right solution designed to keep your operator comfortable and operation moving.

  • Celebrating 65 Years of the Raymond Reach Truck

    Raymond pioneered narrow aisle with the invention of the first narrow aisle forklift in 1951. For 65 years, we’ve continuously innovated the reach forklift—from the introduction of AC technology into electric forklifts to the industry's first integrated operator display—to give our customers the best reach trucks in the industry.

  • Vantage Point Camera System

    With the Vantage Point option, a camera below the fork carriage delivers high-resolution images to a color monitor in the operator compartment. A clearly visible green reference line on the monitor shows the operator the position of the fork tips, enabling accurate retrieval.
