9800 Swing-Reach Turret Truck

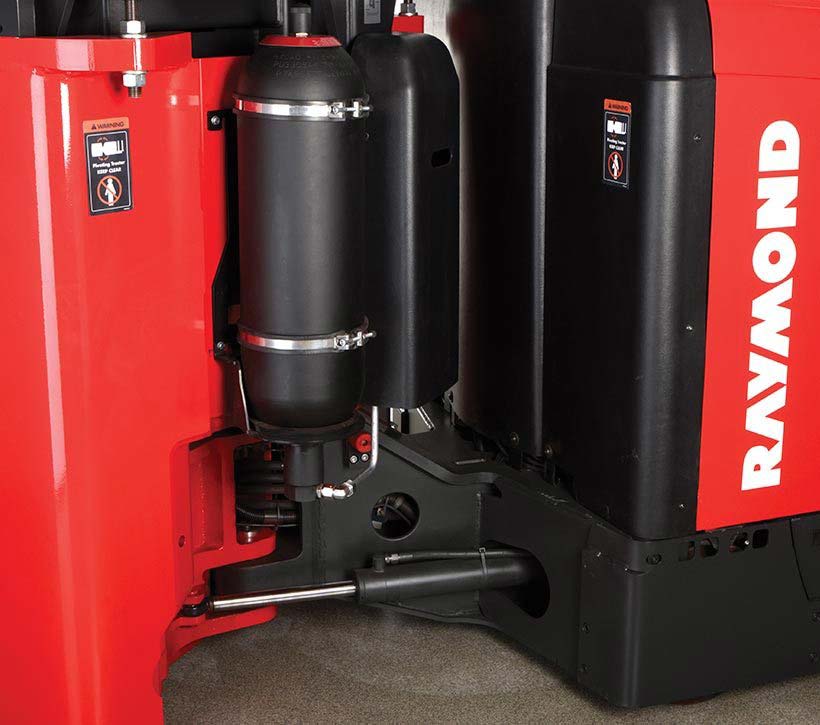

  • Raymond 9800 Swing-Reach Truck Advanced lifting system
    Raymond lift trucks are engineered for Eco-Performance

    Advanced Lifting System

    A combination of hydraulic and gas-pressure lifting for smooth operation and lower energy usage.
    Advanced Lifting System
  • Raymond 9800 Swing-Reach Truck
    Raymond engineers productive lift trucks

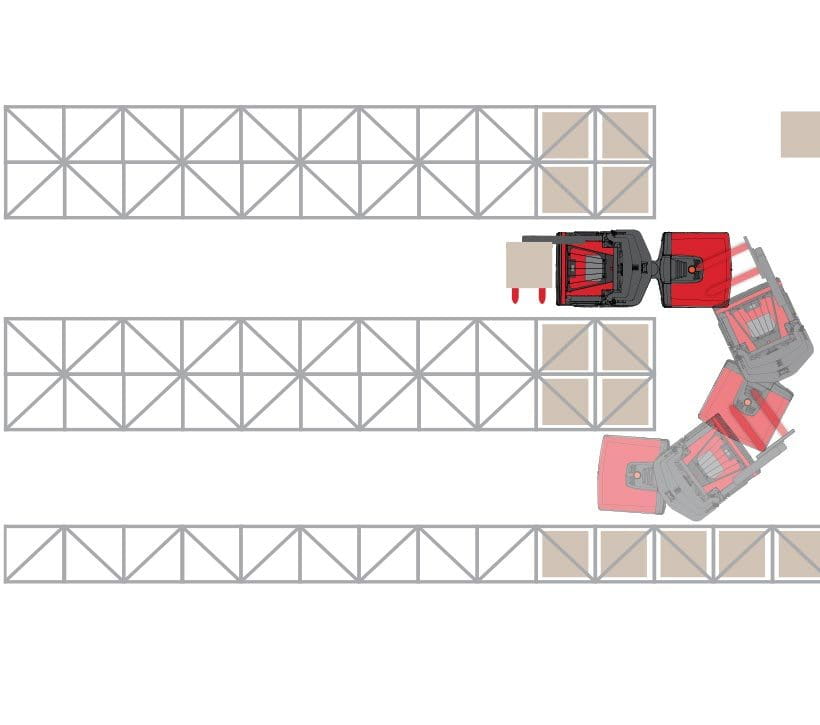

    Articulated Steering

    Navigates between aisles in less than 10 seconds using a transfer aisle up to 3 feet narrower than non-articulated trucks.
    Articulated Steering
  • Raymond 9800 Swing-Reach Truck
    Raymond engineers productive lift trucks

    Dual-Drive Four-Wheel Design

    Provides ultimate stability for class-leading lift capacities, reduced floor loading and a smoother ride.
    Dual-Drive Four-Wheel Design

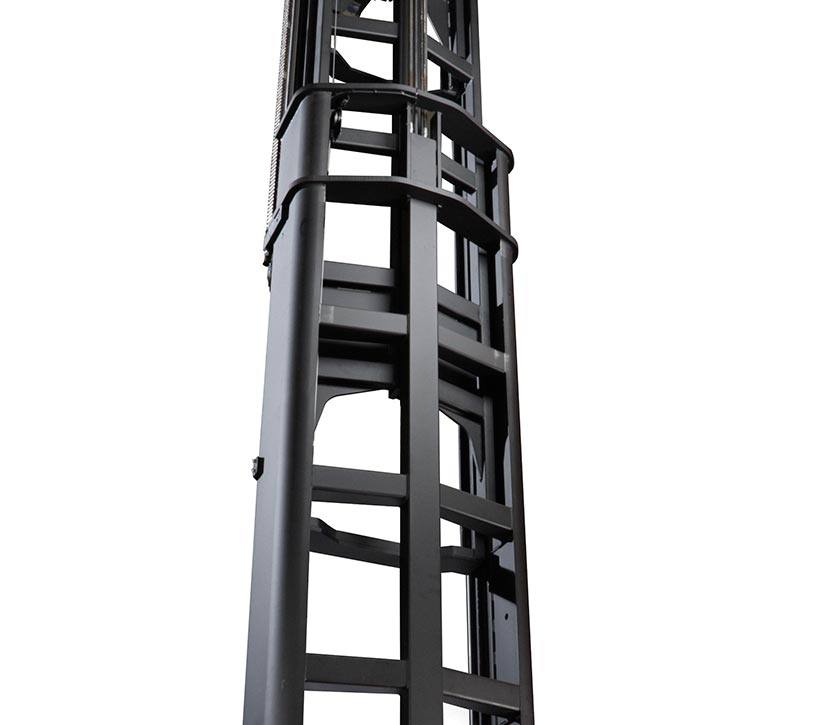

  • Raymond 9800 Swing-Reach Truck Triplex Mast
    Raymond durable lift trucks

    Massive and Rigid Triplex Mast

    Provides ultimate stability and can lift 2,500 lbs. to nearly 50 feet.
    Massive and Rigid Triplex Mast
  • Raymond 9800 Swing-Reach Truck
    Raymond engineers productive lift trucks

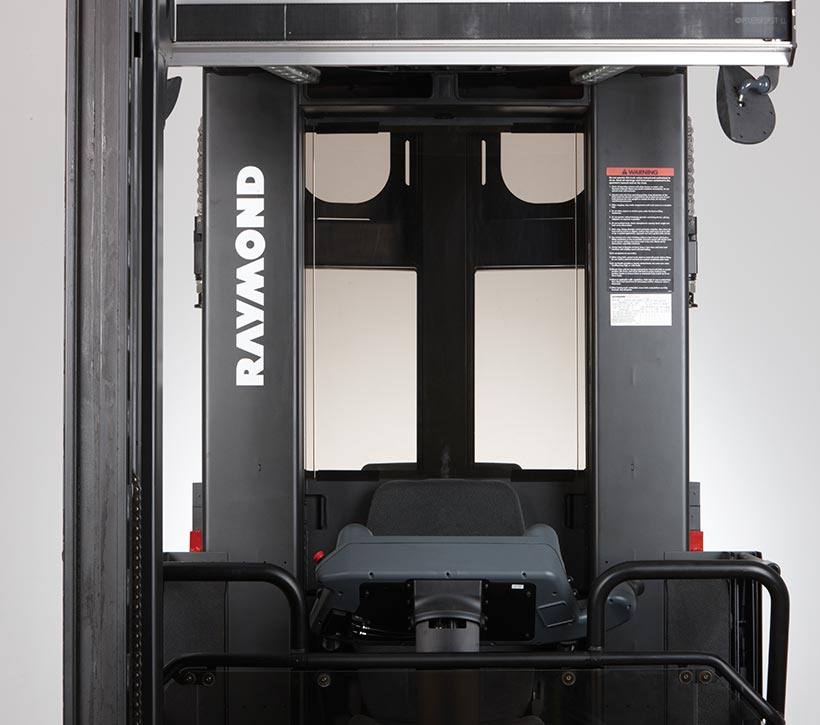

    Clear View Mast

    A triplex mast with low collapsed heights and no cables or hoses to clutter it up provides excellent visibility in every direction.
    Clear View Mast

Watch your Space Multiply

The Raymond 9800 Swing-Reach truck offers a whole new level of productivity and energy efficiency, utilizes spaces more effectively, and sets a new standard for driving down costs. This Swing-Reach turret truck has been engineered with stability and maneuverability to take your warehouse to the next level.

  • Battery: 48 volt
  • Capacity: 2,500 lbs to nearly 50 feet; 3,300 lbs to 30 feet
  • Elevated Height: 584" maximum
  • Overall Width: 60"

A Turret Forklift Built to Perform

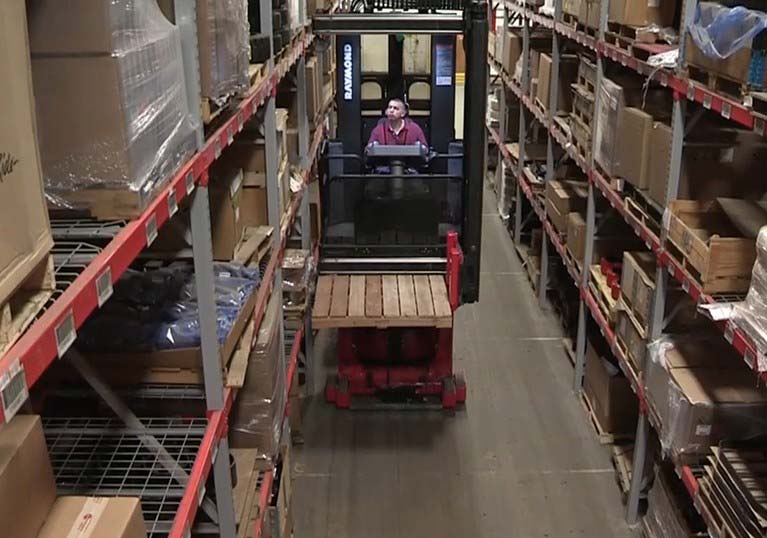

  • Raymond 9800 Swing Reach Truck in Aisle

    ADVANCED LIFTING SYSTEM

    This fully integrated combination of hydraulic and gas-pressure lifting for smooth operation results in 40% less energy used than many competing models.

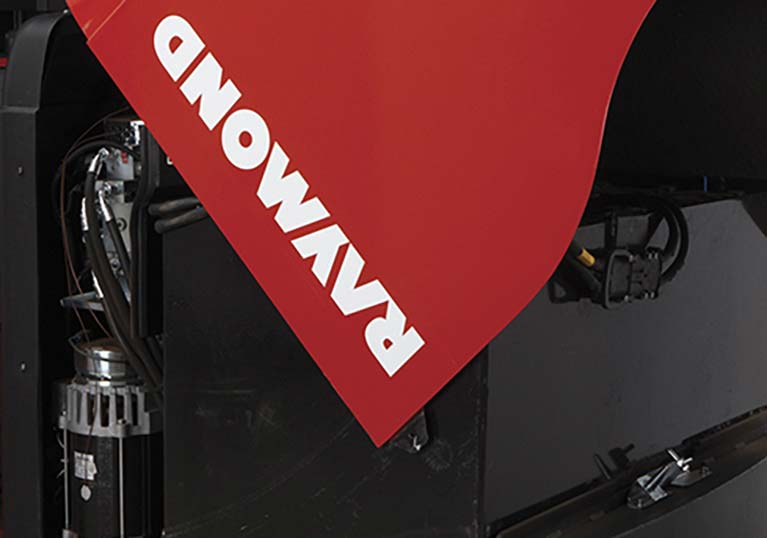

  • Raymond 9800 Swing Reach Truck energy efficient ACR System

    ENERGY EFFICIENT

    A 48-volt system provides main lift speed up to 88 feet per minute compared to competitor 72- and 80-volt trucks. This allows for a smaller lift motor, which reduces heat loss and enables users to run as long as two shifts on one battery charge.

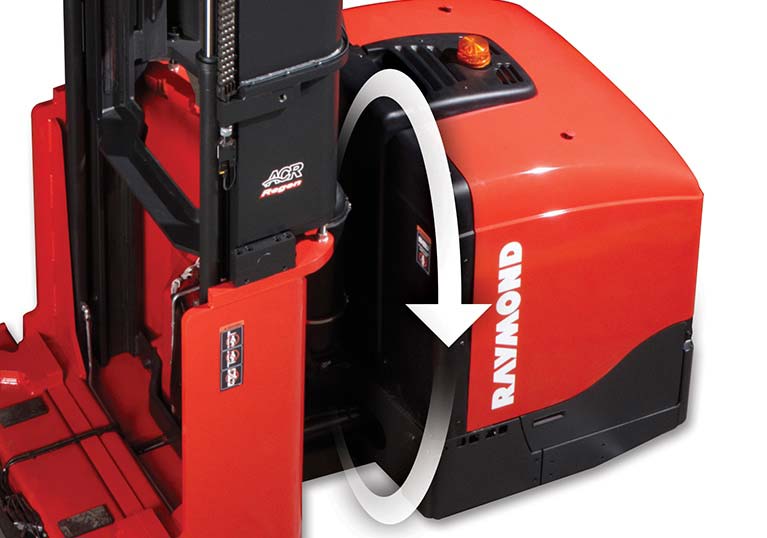

  • Raymond 9800 Swing Reach Truck Regenerative Lowering

    REGENERATIVE LOWERING

    A standard feature of the 9800 Swing-Reach turret truck, regenerative lowering creates power by returning it directly to the battery, resulting in fewer battery changes and reduced downtime.

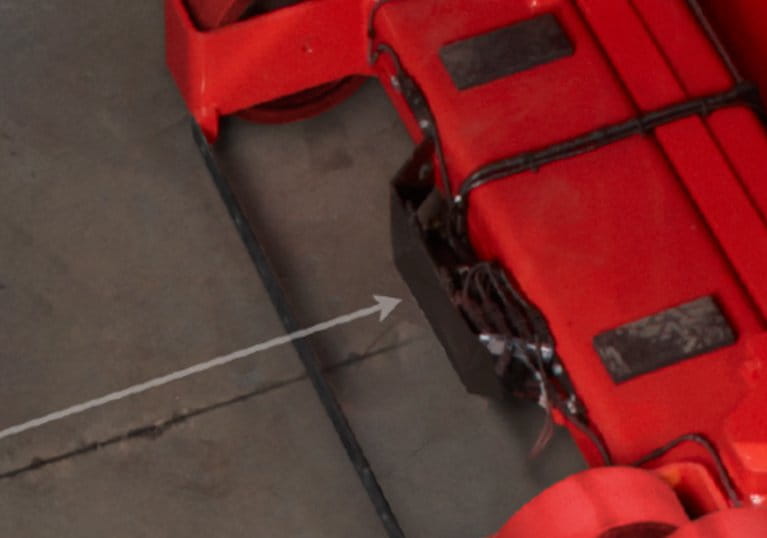

  • Raymond 9800 Swing Reach Truck Wire Guidance Feature

    INTELLIGUIDE AND WIRE GUIDANCE

    This no-tune system offers excellent tracking and eliminates the need for steering in aisles, reducing product, truck and facility damage while increasing operator productivity.

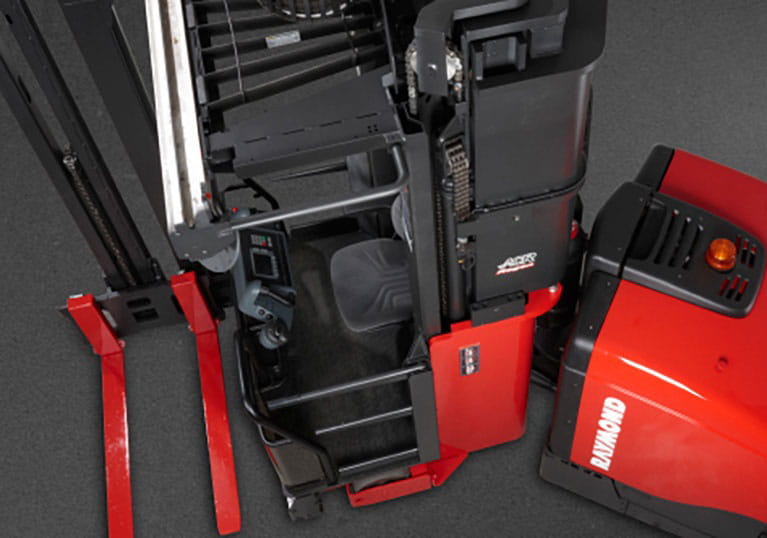

  • Raymond 9800 Swing Reach Truck Overhead view

    INTELLISPEED

    Optimizes travel speed at height by providing smooth coordination between speeds based on load height and weight.
  • Raymond 9800 Swing Reach Truck auto traverse feature

    AUTO TRAVERSE AND ROTATE

    Improves productivity by automatically synchronizing the traverse and rotate movements to keep the forks within the aisle when re-positioning.

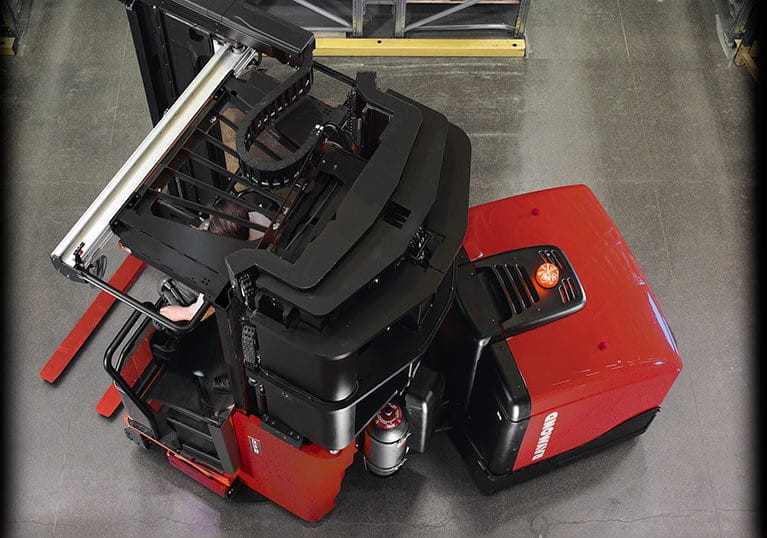

  • turret truck, swing reach truck

    ARTICULATED STEERING

    Enables the truck to maneuver easily through 13-foot intersecting aisles with a 50-inch load and is easy to drive in 'free-ranging' conditions when outside of the storage aisle.

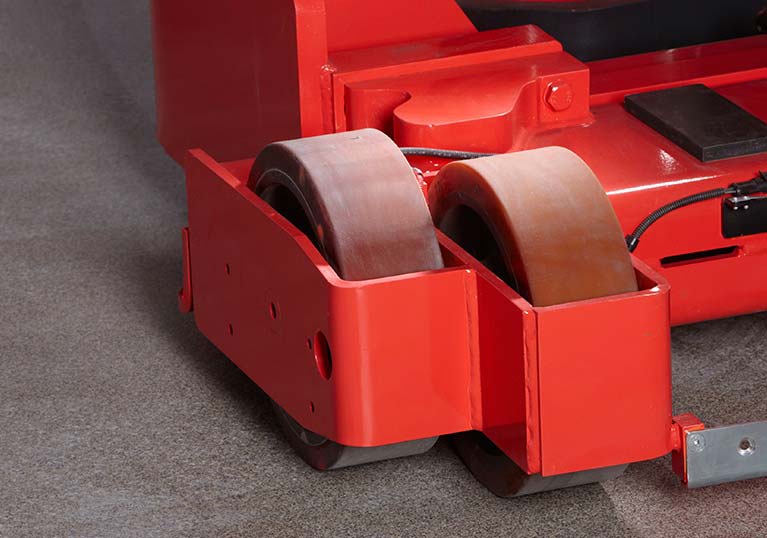

  • Raymond 9800 Swing Reach Truck dual drive tires

    QUADSET BOLT-ON LOAD WHEELS

    The staggered front bolt-on load wheel design allows the truck’s overall frame width to be easily changed, allowing flexibility to accommodate various aisle widths.

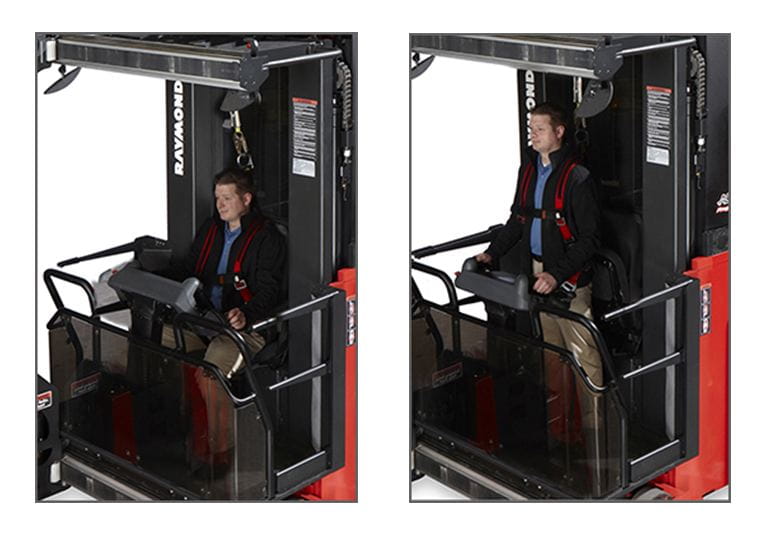

  • Raymond 9800 Swing Reach Truck Operating Positions

    OPERATING POSITIONS

    A variety of driving positions encourages movement within the operator’s compartment, providing postural relief while allowing travel both forks first and tractor first.

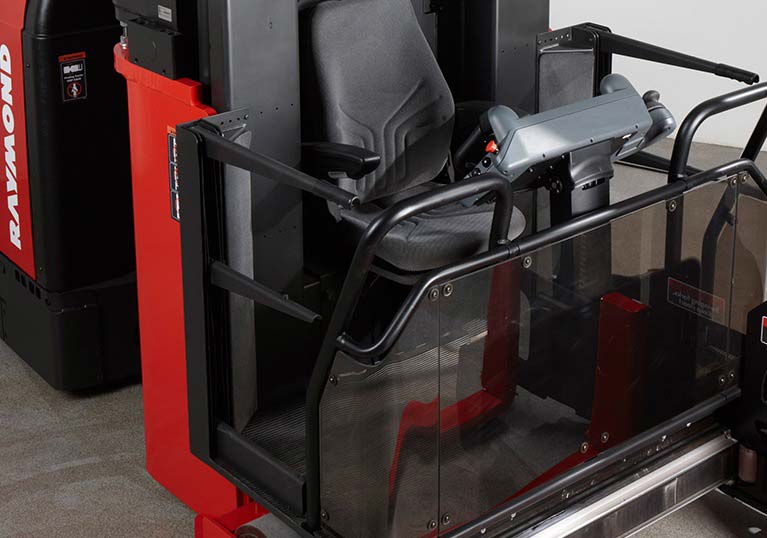

  • Raymond 9800 Swing Reach Truck Comfortable operator compartment

    COMFORTABLE COMPARTMENT

    Features an adjustable, plush padded seat with a flip-up mechanism for driving in the standing position.

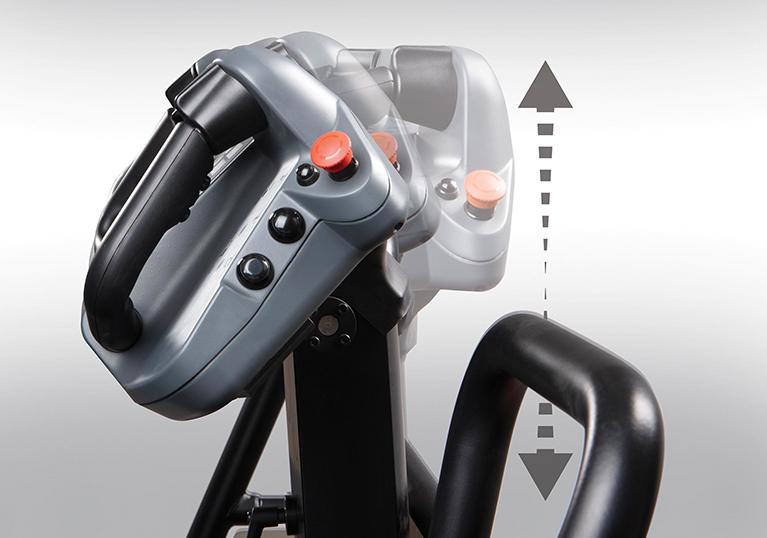

  • Raymond 9800 Swing Reach Truck adjustable height handle

    INTEGRATED CONTROL PANEL

    The fully adjustable integrated operator’s control panel has intuitive simultaneous function controls, for ease of learning, enhanced comfort and improved operator productivity.

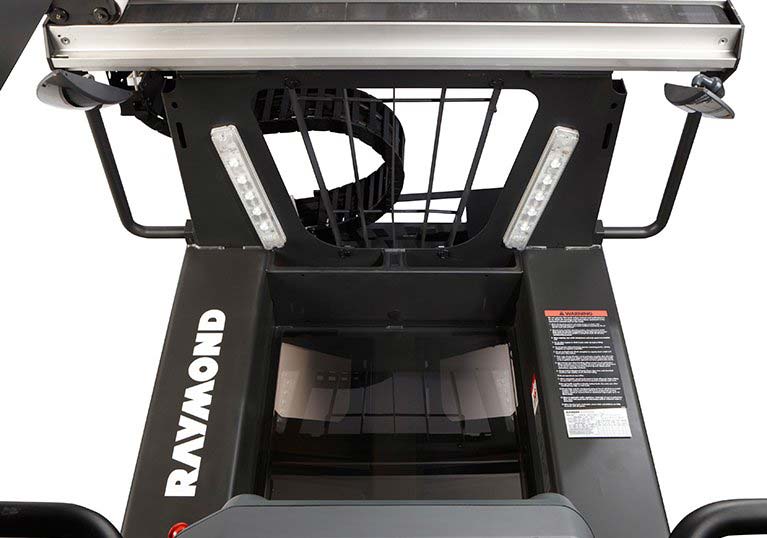

  • Raymond 9800 Swing Reach Truck compartment picking lights

    LIGHT AND FAN PACKAGE

    LED compartment and picking lights offer efficient lighting and a cooling fan provides air circulation for enhanced comfort when operating in increased temperatures at higher elevations.
  • Raymond 9800 Swing Reach Truck advanced belt drive

    ADVANCED BELT DRIVE

    Provides fast fork traverse that automatically adapts to load weight and reduces lubrication requirements.

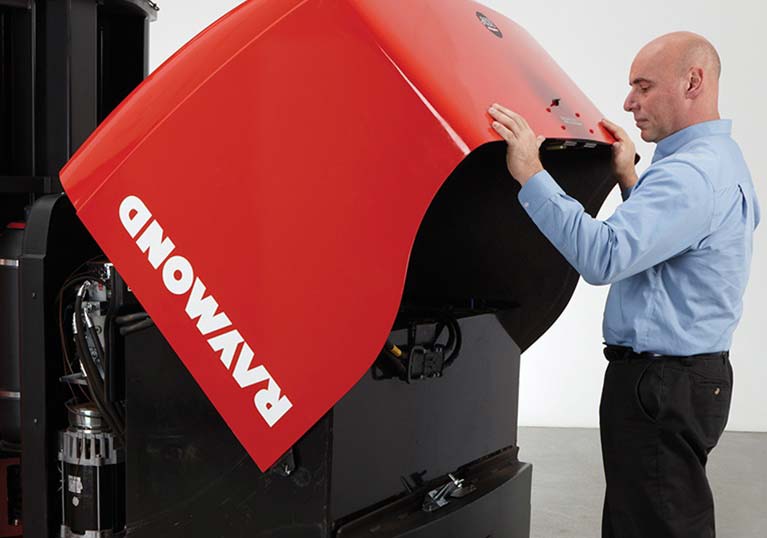

  • Raymond 9800 Swing Reach Truck easy cover removal  for service

    EASE OF ACCESS

    From the durable, easily removed cover to the intuitive controls and layout of components, you’ll experience less downtime with ease of access and reduced time to repair.
  • Raymond Cold Storage Equipped Lift Trucks

    Cold Storage Conditioning

    Refrigerated warehouses and other cold storage facilities are tough environments to work in. Our innovative design and robust systems take on below freezing temperatures by protecting sensitive control systems with hydraulic, mechanical, and electrical components that are matched to different temperature levels to assure peak performance.

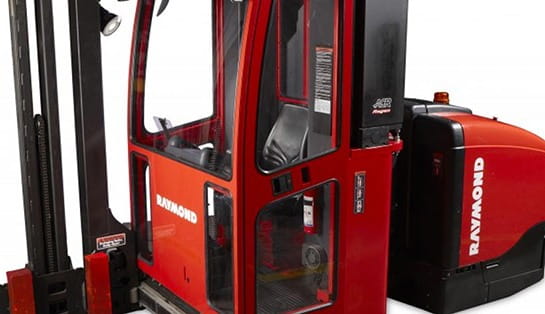

  • Raymond 9800 Swing Reach Turret Truck with Optional Enclosed Operator's Cab

    Enclosed Operator's Compartment

    The enclosed cab provides a warm work environment for operators working in cold storage facilities. Featuring sliding doors on both sides of the platform for entering and exiting the vehicle, and double pane thermal glass is used on all 4 sides of the cab to provide good visibility in all directions as well as to contain the heat in the cab.

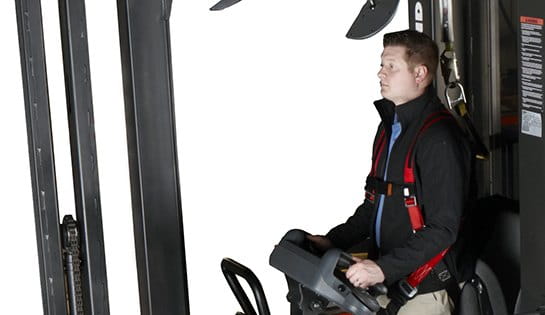

  • Raymond 9800 Swing Reach Turret Truck with Vertical Hold Option

    Vertical Hold

    Offers operators assistance in storing and retrieving loads from frequently referenced rack heights. Vertical Hold allows the operator to select from up to 199 programmable preset lift heights, using the reach and retract control handle buttons.

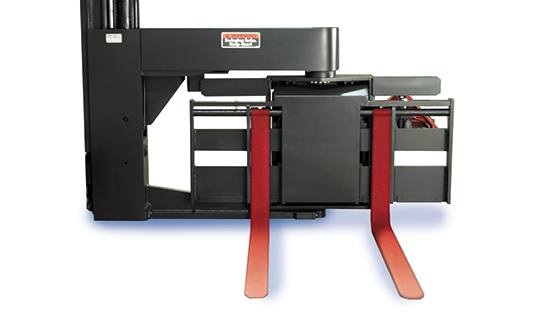

  • Raymond 9800 Swing-Reach Truck with extended turret for wide load handling

    Extended Turret

    Extended turret options are available to accommodate loads as large as 48 inches deep by 110 inches wide; aisle widths will vary based on the size of the load.
  • Raymond 9800 Swing Reach Truck Heated Seat Option

    Heated Seat

    The optional heated seat enhances operator comfort throughout the shift by providing some relief from the cold of freezer applications. Heaters are thermostatically controlled to shut off when the truck is being operated in non-freezer, ambient environments.
  • Raymond 9800 Swing Reach Turret Truck with Fork Positioner

    Fork Positioner/Fork Tilt

    The fork positioner option allows forks to be adjustable to an increased or decreased overall width, providing easier movement and storage of multiple width loads, with less possibility of product damage. Applications utilizing live racking can improve cycle times and reduce product damage with the integrated fork tilt unit. With an adjustable tilt angle of 4 degrees, operators can more precisely pick and put away loads.
  • Cold Storage

    Refrigerated warehouses, blast freezers, and other cold storage facilities require robust control systems. Raymond maintains its own cold storage test facility to replicate the harshest conditions; testing and proving our systems in extreme cycles of freezing and thawing. Raymond Swing-Reach trucks can be equipped with cold storage conditioning and heated cab options to enhance operator comfort in cold storage warehouses.

  • High Level Order Picking

    Boost throughput and pick rates with reliable, high performance Raymond Swing-Reach turret trucks. Lifting greater capacities to higher heights means greater order picking productivity for your operators. And, we can customize our vast selection of Swing-Reach trucks, including lift heights and performance packages to meet very narrow aisle needs and order picking requirements.

  • High Rack

    Engineered to lift heavy loads higher in a highly compact footprint, and to improve speed and efficiency in operations. This truck is suited for most existing very narrow aisle operations, and has the capacity to lift 3,300 pounds to 30 feet, and 2,500 pounds to nearly 50 feet.

  • Very Narrow Aisle

    With over 200 combinations of heights, features and capacities, Raymond's family of very narrow aisle forklifts and swing-reach trucks offer superior versatility and effective solutions, each improving the utilization of your warehouse space. The 9800 Swing-Reach truck can operate in an aisle as narrow as 60 inches.

  • Raymond 9800 Swing-Reach Truck: Lift Heavy Loads Higher

    Lift heavy loads higher in a highly compact footprint. With exceptional maneuverability and an energy efficient design, the 9800 turret truck offers a whole new level of productivity and energy efficiency, utilizes spaces more effectively, and sets a new standard for driving down costs. This Swing-Reach truck has been engineered to take your very narrow aisle warehouse to the next level.
  • Raymond's intelliguide™ Wire Guidance System

    Raymond's intelliguide is a proven, reliable system for customers who are looking to maintain or improve profitability in their warehouse operations through better management of space, equipment, and people. Raymond's patented intelliguide system provides no-tune wire guidance with excellent tracking and stability for very narrow aisle forklifts.
